VAR-SOM-AM62
TI Sitara AM62x
The VAR-SOM-AM62 is a cost-effective System on Module (SoM) / Computer on Module, combining a high-performance CPU, reduced power consumption and graphics capabilities.
Powered by 1.4GHz Quad Cortex™-A53 TI Sitara AM625 with 400MHz Cortex-M4F and 333MHz PRU real-time co-processors, the SoM provides an ideal solution for industrial embedded products and power-sensitive edge devices.
This highly integrated platform’s connectivity options include certified single or dual-band WiFi, Bluetooth/BLE5.2, 3x CAN Bus, dual GbE, audio, camera in and dual USB. The platform supports full -40 to 85C industrial operating temperatures, an integrated GPU graphics acceleration engine a dual LVDS display interface and security features.
The VAR-SOM-AM62 is fully compatible with Variscite's VAR-SOM Pin2Pin family, offering maximum flexibility from cost-effective entry-level options to advanced, high-performance modules.
* For the complete Pin2Pin product list, check out Variscite’s Pin2Pin System on Module product families.
** The Pin2Pin compatibility depends on pinmux options; please verify the detailed pinout table in the related SoM to confirm compatibility is maintained in your specific design.
Starting from
53
$
Highlights
CPU
Up to 1.4GHz Quad Cortex-A53 Texas Instruments Sitara AM625
High Speed Interfaces
2x USB2.0, 2x GbE
Certified WiFi/Bluetooth
802.11 ac/a/b/g/n + Bluetooth/BLE 5.2
Temperature range
-40 to 85°C
Real-time CPU
400MHz Cortex-M4F and 333MHz PRU
Product Longevity
2038
Support
Supporting you every step of the way - from ideation to launch and beyond.
Free and prompt support directly from Variscite’s R&D experts.
Quick Links
Specifications
CPU Name
Texas Instruments AM62x
CPU Type
Cortex-A53
CPU Cores
4 Cores
CPU Clock (Max)
Up to 1.4GHz
Real-time co-processor
400MHz Cortex-M4F and 333MHz PRU (Programmable Realtime Unit)
Integer performance (DMIPS)
Up to 12,880
RAM
512MB – 4GB DDR4
eMMC
8 – 128 GB
Multimedia
2D/3D Graphics Acceleration
Imagination AXE-1-16M
Camera Interfaces
MIPI-CSI2
Display
LVDS
Dual 1920×1080 24-bit
Touch controller
Resistive, Capacitive
Audio
Headphone driver
Yes
Microphone
Digital, Analog (stereo)
Digital audio serial interface
3 x I2S(McASP)
Line In/Out
Yes
Connectivity
SD / MMC
x1
USB Host / Device
USB 2.0: 2x OTG
UART
x9, up to 3.6 Mbps
I2C
x5
SPI
x5
CAN Bus
x3
RTC
On carrier
JTAG
x1
QSPI
x1 / x2
GPMC
GPMC for external 8/16-bit parallel bus
Networking
Ethernet
2x 10/100/1000 Mbps
WiFi
Certified single-band 802.11 b/g/n or dual-band 802.11 ac/a/b/g/n
Bluetooth
Bluetooth/BLE 5.2
Linux
Yocto, Debian, Boot2Qt
Android
Yes
FreeRTOS
Yes
Mechanical Specifications
Dimensions (W x L)
67.8 x 33mm
Electronic Specifications
Supply voltage
3.3V
Digital I/O voltage
3.3V
Environmental Specifications
Extended operating temperature
0 to 85°C
Industrial operating temperature
-40 to 85°C
Storage temperature
-40 to 85°C
Storage humidity
5% to 95%
VAR-SOM-AM625[x]_[xxxx]C_[xxxx]R_[xx]G_[AC]_[EC]_[TP]_[WB[D]]_[OSPI/GPMC/MMC2]_[RG2CM]_[X]T
AM625[x]:
Processor type:
TI 6252 dual core: 2
TI 6254 quad core: 4
TI 6252 dual core: 2
TI 6254 quad core: 4
[xxxx]C:
CPU clock speed: 1400MHz: 1400C
[xxxx]R:
DDR4: 512MB: 512R, 1024 MB: 1024R, 2048 MB: 2048R, 4096 MB: 4096R
[xx]G:
eMMC: 8 GB : 8G, 16 GB : 16G, 32 GB : 32G, 64 GB : 64G, 128 GB : 128G
[AC]:
Audio Codec
[EC]:
GbE PHY (second port always via RGMII)
[TP]:
Resistive touch panel controller
[WB[D]]
WB: Built-in certified single band WiFi 802.11 b/g/n + Bluetooth 5.1/BLE
WBD: Built-in certified dual band WiFi 802.11 ac/a/b/g/n + Bluetooth 5.2/BLE
WBD: Built-in certified dual band WiFi 802.11 ac/a/b/g/n + Bluetooth 5.2/BLE
[OSPI/GPMC/MMC2]
Default: No extra interface
OSPI: Extra Octa/Quad/Dual SPI
GPMC: Extra parallel bus
MMC2: Extra SDIO/MMC2 (available only without WB/W)
OSPI: Extra Octa/Quad/Dual SPI
GPMC: Extra parallel bus
MMC2: Extra SDIO/MMC2 (available only without WB/W)
[RG2CM]
Default: 3.3V over the RGMII pins
RG2CM: 1.8V over the RGMII pins
RG2CM: 1.8V over the RGMII pins
[x]T:
E: 0 to 85°C, I : -40 to 85°C (note: PRU available only in IT grade)
Note: All options in [brackets] are optional add-ons that can be either removed or selected from a list of options
Documentation
Our Long-Standing Partnerships
Our close partnerships with leading technology vendors provide our customers with early access to the latest advanced solutions, ensuring your projects begin with a solid and future-ready foundation.
Evaluation Kit

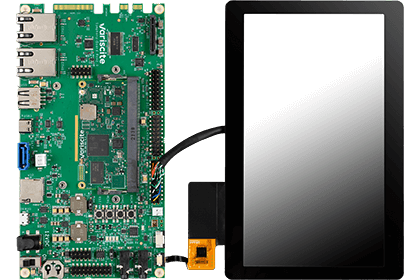

VAR-SOM-AM62 Evaluation Kits
