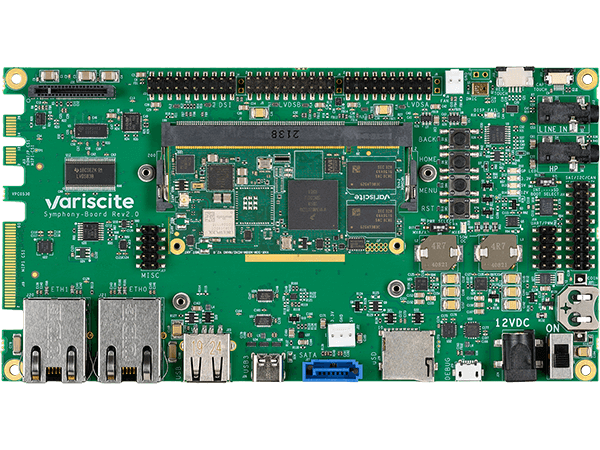

VAR-SOM-MX8M-NANO
Evaluation Kits
The VAR-SOM-MX8M-NANO Development Kit and Starter Kit can serve as a complete development platform for both evaluation and application development purposes. The kits provide a great showcase of the VAR-SOM-MX8M-NANO connectivity features and performance.
Specifications
Starter Kit
Development Kit
Display
7" WVGA
Touch Panel
Capacitive
Micro-USB Debug Cable
Ethernet Cable
12V Power Supply
Antenna
Heat Sink
Boot/Rescue SD Cards
Carrier Board Design Package
Part number
VAR-STK-VS8M-NANO
VAR-DVK-VS8M-NANO
System on Module
CPU Name
NXP i.MX8M Nano
CPU Type
Cortex™-A53
CPU Cores
4
CPU Clock
1.5GHz
RAM
1 GB DDR4
eMMC
16 GB
Ethernet
10/100/1000 Mbps
WiFi
Certified WiFi 6 dual-band 802.11ax/ac/a/b/g/n
Bluetooth
5.4 / BLE
LVDS
18-bit / 24-bit
Audio codec
Yes
OS support
Linux / Android
Temperature
0 to 70°C
CAN Bus
x1
Part number
VAR-SOM-MX8MNQ_V2_1500C_1024R_16G_AC_EC_LD_TP_CN_WBD_CT
Symphony-Board
Carrier Board
SO-DIMM200
Supporting the VAR-SOM-MX8M-NANO
LVDS
2x Header, 18-bit / 24-bit
Backlight Driver
PWM Control
Capacitive touch panel
Capacitive touch panel (6-pin FFC/FPC)
Headphone
3.5 mm connector
Line - in
3.5 mm connector
Digital microphone
on-board
SD-CARD
SD Card Socket
CAN Bus
x1
Ethernet
10/100/1000 Mbps, RJ45
VAR-[STK / DVK]-VS8M-NANO_V2_[x]O
STK/DVK
STK: Starter kit
DVK: Development kit
[x]O
L: Linux, A: Android
Order the product online
