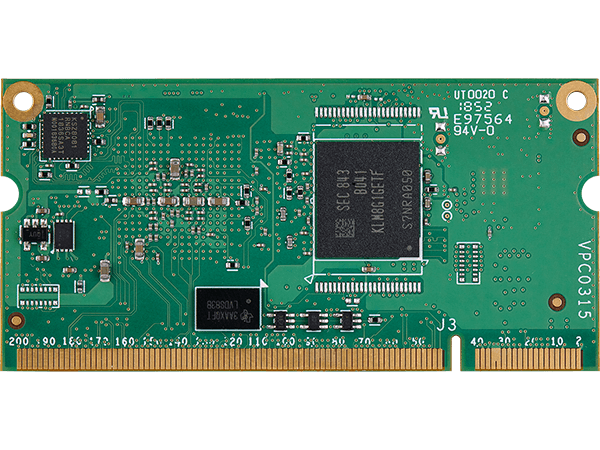

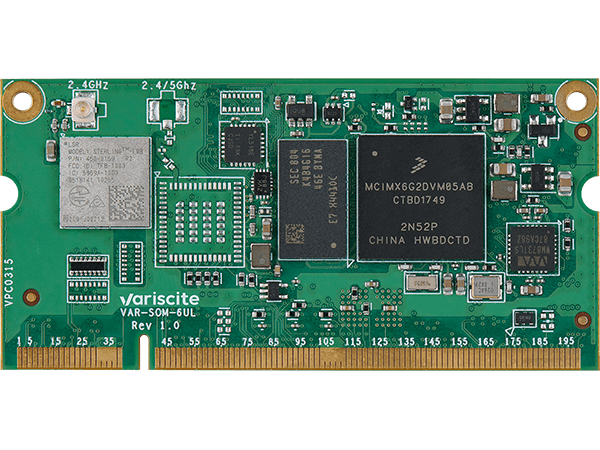

VAR-SOM-6UL
NXP iMX6UL / iMX6ULL / iMX6ULZ
The VAR-SOM-6UL is a highly flexible System on Module (SoM) / Computer on Module (CoM) based on NXP i.MX 6UltraLite / i.MX 6ULL / i.MX 6ULZ ARM Cortex-A7 processor, up to 900MHz CPU Clock. The SoM is a member of Variscite’s VAR-SOM Pin2Pin family and provides a scalable pin-compatible option to i.MX6, i.MX8/ 8X/ 8M/ 8M-Mini and i.MX 8M Nano-based platforms. The Pin2pin family offers Variscite’s customers a high level of scalability, extended lifetime availability and reduced development time, cost and risk.
The VAR-SOM-6UL provides a variety of interfaces and connectivity options – all packaged at an optimized power, size and cost. The SoM's highly integrated connectivity includes a certified single 802.11b/g/n or dual-band WiFi 802.11ac/a/b/g/n, Bluetooth/BLE, dual Ethernet, dual USB, audio, camera in, parallel RGB and LVDS display with touch panel and serial interfaces.
The system supports industrial temperature grades -40 to 85°C and long longevity commitment targeting embedded products in various industrial segments and applications.
The VAR-SOM-6UL integrates into Variscite's VAR-SOM Pin2Pin family, providing scalability across the full performance spectrum and reducing time-to-market when migrating between platforms.
For the complete Pin2pin product list, check the Variscite Pin2Pin System on Module families.
** The Pin2Pin compatibility depends on pinmux options; please verify the detailed pinout table in the related SoM to confirm compatibility is maintained in your specific design.
Starting from
24
$
Highlights
CPU
900MHz Cortex™-A7 NXP iMX6UL / iMX6ULL / iMX6ULZ
Power Consumption
Under 5mA in suspend
Certified WiFi/Bluetooth
802.11 ac/a/b/g/n + Bluetooth 5.2/BLE
Temperature range
-40 to 85°C
Graphics Acceleration
2D pixel acceleration engine (PxP)
Product Longevity
2035
Support
Supporting you every step of the way - from ideation to launch and beyond.
Free and prompt support directly from Variscite’s R&D experts.
Quick Links
Specifications
CPU Name
NXP i.MX6 UltraLite / i.MX 6ULL / iMX 6ULZ
CPU Type
Cortex™-A7
CPU Cores
1 Core
CPU Clock (Max)
900 MHz
Integer performance (DMIPS)
Up to 1,710
RAM
128 – 1024 MB DDR3L
SLC NAND
128 – 512 MB
eMMC
8 – 128 GB
Multimedia
2D/3D Graphics Acceleration
2D pixel acceleration engine (PxP)
Camera Interfaces
1x 24bit CPI
Display
Parallel RGB
1366 x 768 24-bit
LVDS
1366 x 768 18-bit
Touch controller
Resistive, Capacitive
Audio
Headphone driver
Yes
Microphone
Analog
Digital audio serial interface
SSI(AUDMUX), S/PDIF
Line In/Out
Yes
Connectivity
SD / MMC
x1
USB Host / Device
USB 2.0 : 1x Host, 1x OTG
UART
x8, up to 5 Mbps
I2C
x4
SPI
x4
CAN Bus
x2
RTC
On carrier
ADC
12-bit 2 x 10 channel
Networking
Ethernet
2x 10/100 Mbps
WiFi
Certified single 802.11 b/g/n or dual-band WiFi 802.11 ac/a/b/g/n
Bluetooth
Bluetooth/BLE 5.2
Linux
Yocto, Debian, Boot2Qt
Android
N/A
Mechanical Specifications
Dimensions (W x L)
67.6 x 33.0 mm
Electronic Specifications
Supply voltage
3.3 V
Digital I/O voltage
3.3 V
Environmental Specifications
Commercial operating temperature
0 to 70°C
Industrial operating temperature
-40 to 85°C
Storage temperature
-40 to 85°C
Storage humidity
5% to 95%
VAR-SOM-6UL_G/Y/Z[x]_[xxx]C_[xxx]R_[xx]N_[AC]_[EC]_[TP]_[LD]_[WB[D]]_[x]T
G/Y/Z[x]:
CPU type:
6ULZ: Z (limited interfaces, 900MHz CT only)
6ULL Y2 : Y2
6UL G2 with extra security features: G2
6UL G3 with full security: G3 (Feature comparison chart)
6ULZ: Z (limited interfaces, 900MHz CT only)
6ULL Y2 : Y2
6UL G2 with extra security features: G2
6UL G3 with full security: G3 (Feature comparison chart)
[xxx]C
CPU clock speed: 528MHz: 500C, 696MHz: 700C (only available for G2), 792MHz: 800C (only available for Y2), 900MHz: 900C (only available for 6ULZ and 6ULL Y2)
[xxx]R
RAM size: 128 MB : 128R, 256 MB : 256R, 512 MB : 512R, 1024 MB : 1024R
[x]N:
NAND / eMMC size:
NAND : 128 MB : 01N, 256 MB : 02N, 512 MB : 05N
eMMC : 8 GB : 8N, 16 GB : 16N, 32 GB : 32N, 64 GB : 64N
NAND : 128 MB : 01N, 256 MB : 02N, 512 MB : 05N
eMMC : 8 GB : 8N, 16 GB : 16N, 32 GB : 32N, 64 GB : 64N
[AC]:
Audio Codec
[EC]:
Ethernet PHY
[TP]:
4-wire Touch Panel.
Note: Capacitive touch is natively supported through I2C in the base configuration
Note: Capacitive touch is natively supported through I2C in the base configuration
[LD]:
LVDS interface
[WB[D]]
WB: Built-in certified WiFi 802.11 b/g/n + Bluetooth 5.1/BLE
WBD: Built-in certified WiFi 802.11 ac/a/b/g/n + Bluetooth 5.2/BLE
WBD: Built-in certified WiFi 802.11 ac/a/b/g/n + Bluetooth 5.2/BLE
[x]T:
C : 0 to 70°C, I : -40 to 85°C
Note: All the add-ons in [brackets] are optional.
Documentation
Our Long-Standing Partnerships
Our close partnerships with leading technology vendors provide our customers with early access to the latest advanced solutions, ensuring your projects begin with a solid and future-ready foundation.
Evaluation Kit

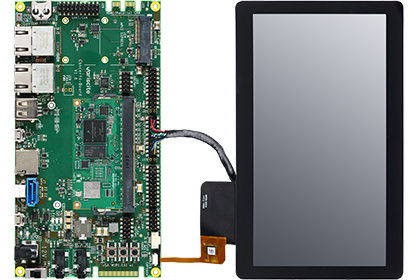

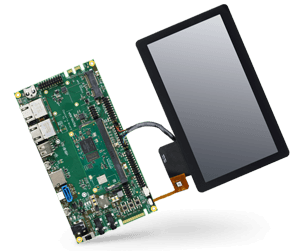

VAR-SOM-6UL Evaluation Kits
